Suntex thermal insulation fabric For Insulation Of Flanges And Pipes

  • Suntex thermal insulation fabric For Insulation Of Flanges And Pipes
  • Suntex thermal insulation fabric For Insulation Of Flanges And Pipes
  • Suntex thermal insulation fabric For Insulation Of Flanges And Pipes
  • Suntex thermal insulation fabric For Insulation Of Flanges And Pipes
  • Suntex thermal insulation fabric For Insulation Of Flanges And Pipes
  • Suntex thermal insulation fabric For Insulation Of Flanges And Pipes
  • Suntex thermal insulation fabric For Insulation Of Flanges And Pipes
Lugar de origen Jiangsu, China
Nombre de la marca Suntex
Número de modelo Materiales de aislamiento de calor
Cantidad de orden mínima Negociable
Precio negotiable
Detalles de empaquetado Embalado en los cartones cargados en las plataformas o según los requisitos de clientes.
Tiempo de entrega 5-20 días
Condiciones de pago L/C, D/P, T/T
Capacidad de la fuente 200000 pedazos del mes

Póngase en contacto conmigo para muestras y cupones gratis.

WhatsApp:0086 18588475571

En WeChat: 0086 18588475571

¿ Qué pasa?: sales10@aixton.com

Si usted tiene alguna preocupación, proporcionamos ayuda en línea de 24 horas.

x
Datos del producto
Material ceramic fiber insulation, fiberglass cloth Yarn type E-Glass
Alkali content Alkali Free Weight from 200 to 2000 gram/sq.mtr
Thickness 25-100mm Colors red,grey,black,green,and customed colors
Temperature resistance -60C-1200C Size be customized according to different shapes and sizes of the equipment
Good Features weatherproof, durable, reusable, easily applicable Application pipes and flanges insulation,etc.
Resaltar

coated fiberglass fabric

,

thermal insulation fabric

,

insulation cover
Deja un mensaje
Descripción de producto

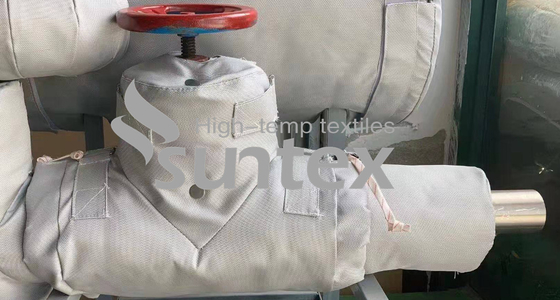

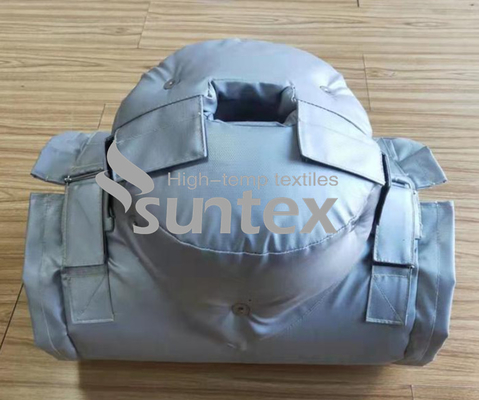

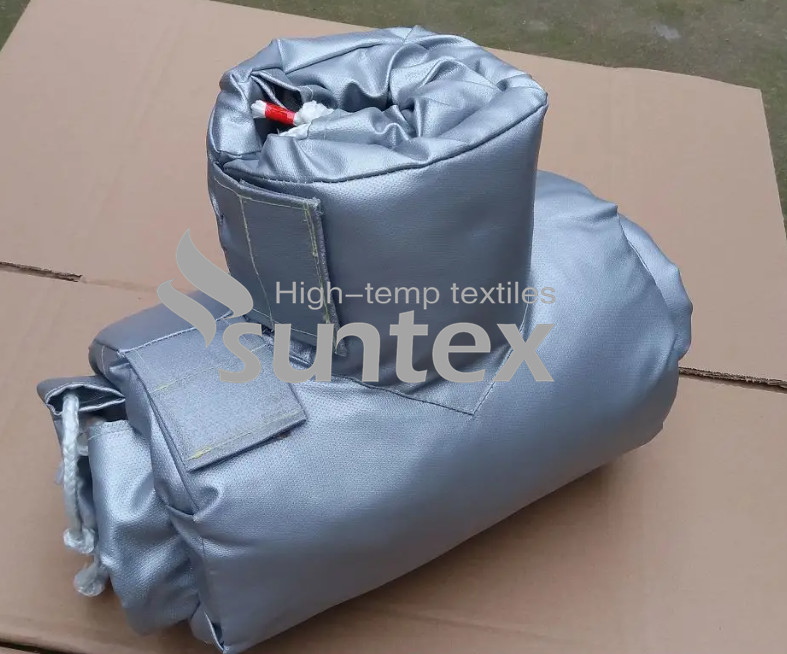

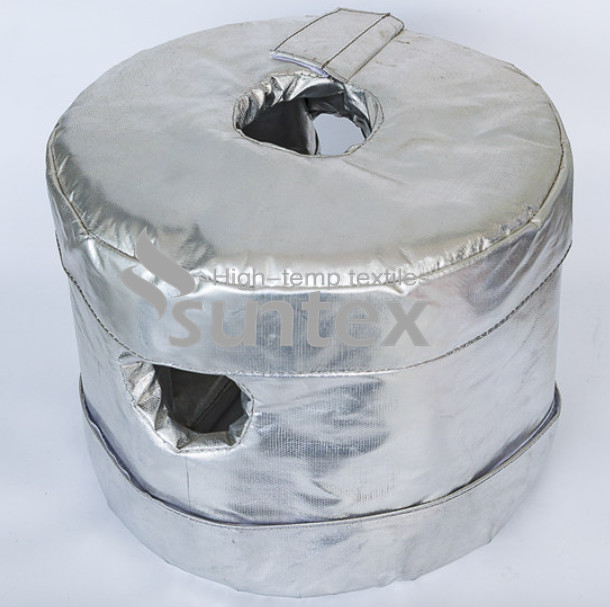

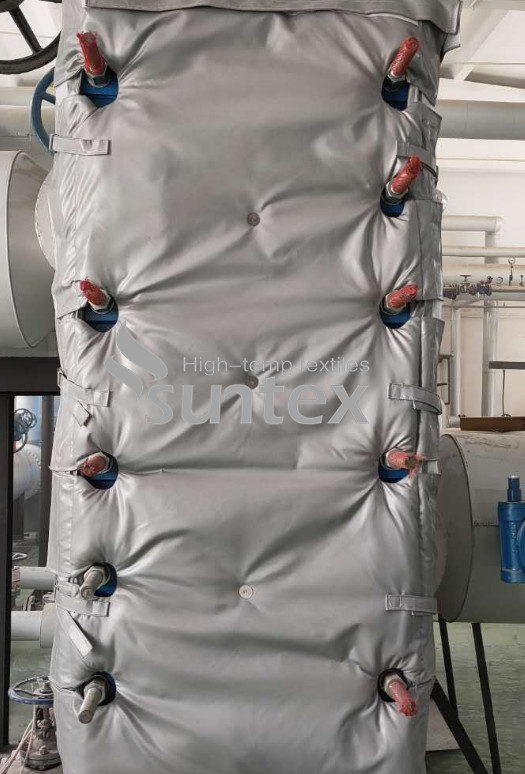

Heat Guard Fiberglass Insulation Cover For Insulation Of Flanges And Pipes



Product Description



    Suntex heat guard insulation cover is an economical solution for reducing heat loss and energy costs. It conserves energy, preserves process temperatures, and improve workplace safety for various applications with in process industry where heat conservation and process temperature are concerns. It is applicable for the insulation of flanges and pipes.


it is also known as removable insulation jackets made from ceramic fiber insulation and fiberglass cloth. It is asbestos free , environmentally safe, durable, reusable, and easily applicable.



Application:

It is customized and wrapped outside flanges, pipes, pumps, filters, exchange, pipeline, valves, freeze protection, and others.



characteristics of Suntex thermal insulation covers:



--Excellent control or reduction of radiant heat loss
--Improves equipment efficiency and durability
--Reduces energy consumption
--Removable and reusable
--Reduce maintenance cost
--Closed insulation system
--Personal protection
--Reduce sound transmission
--Asbestos free and environmentally safe
--Weatherproof



Hereunder is a fabrics list for thermal insulation jacket, cover, and mattress.



Style No. Base fabric Coatings Color Weight Thickness Working temp.
(gram/m2) (Oz/yd2) (mm) (inch) (0C) (0F)
GF430P-SI1413 Fiberglass Silicone silver grey 510 15 0.4 0.016 260 500
GF430P-SI2423 Fiberglass Silicone silver grey 560 16 0.45 0.018 260 500
GF660P-SI2453 Fiberglass Silicone silver grey 960 28 0.76 0.030 260 500
GF880P-SI2463 Fiberglass Silicone silver grey 1380 41 1.25 0.049 260 500
GF600-WS210 Fiberglass Weave-locked Green 630 19 0.6 0.024 550 1000
GF800-WS212 Fiberglass Weave-locked Blue 830 24 0.75 0.030 550 1000
GF430-PTFE213E Fiberglass PTFE Grey/Black 530 16 0.45 0.018 550 1000
GF430-AL1110 Fiberglass Aluminum Foil Silver 470 14 0.4 0.016 550 1000
GF430-AL1300 Fiberglass Aluminized polymer film Silver 450 13 0.4 0.016 550 1000
TGF1000-GP225 Fiberglass Graphite Black 1100 32 1.5 0.059 700 1290
TGF2050-GF235 Fiberglass Graphite Black 2270 67 3.5 0.138 700 1290
TGF880-GP225 Fiberglass Graphite Black 980 29 1 0.039 700 1290
TGF1000-VE226 Fiberglass Vermiculite Tan 1080 32 1.5 0.059 750 1380
TGF1000-CS2110 Fiberglass Calcium Silicate White 1080 32 1.5 0.059 700 1290
TGF1000-CS2111 Fiberglass Calcium Silicate Green 1080 32 1.5 0.059 700 1290
TGF1000-CS2112 Fiberglass Calcium Silicate Blue 1080 32 1.5 0.059 700 1290



Suntex thermal insulation fabric For Insulation Of Flanges And Pipes 0Suntex thermal insulation fabric For Insulation Of Flanges And Pipes 1Suntex thermal insulation fabric For Insulation Of Flanges And Pipes 2Suntex thermal insulation fabric For Insulation Of Flanges And Pipes 3Suntex thermal insulation fabric For Insulation Of Flanges And Pipes 4Suntex thermal insulation fabric For Insulation Of Flanges And Pipes 5Suntex thermal insulation fabric For Insulation Of Flanges And Pipes 6

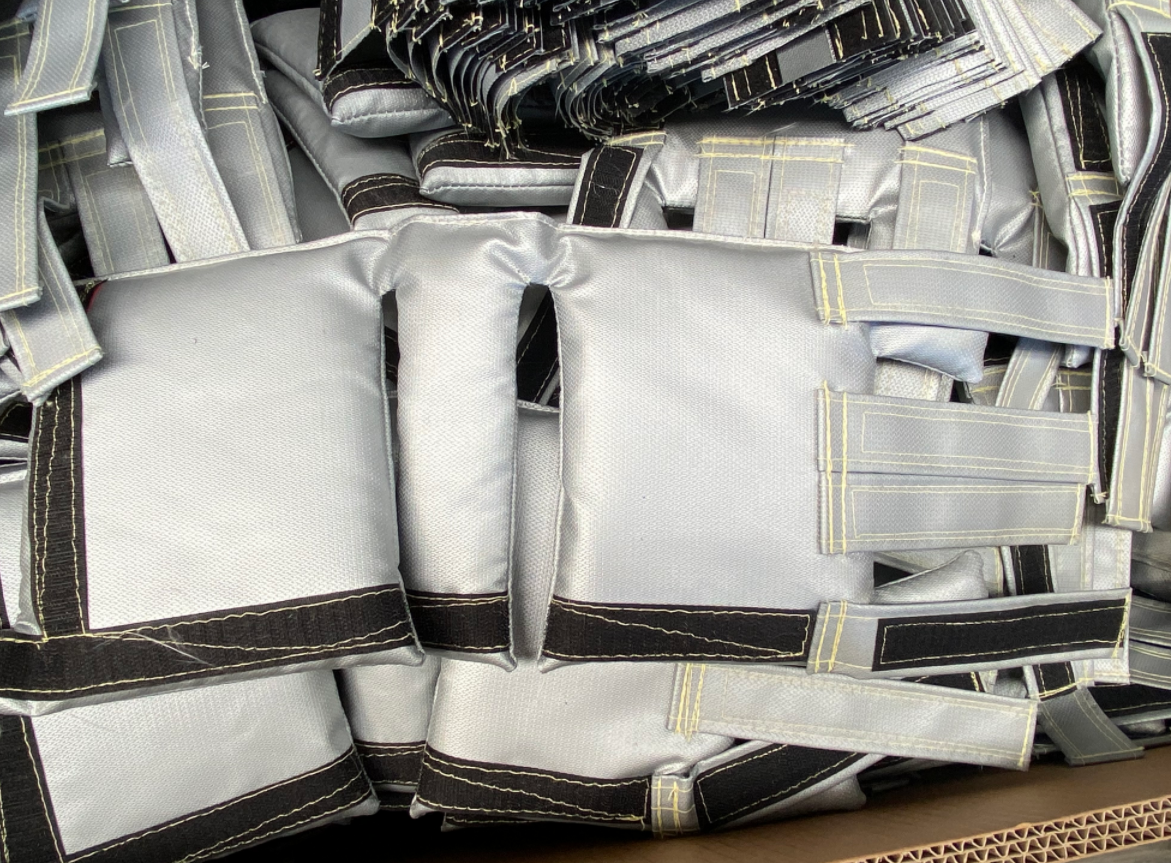

Packaging & Shipping

Suntex thermal insulation fabric For Insulation Of Flanges And Pipes 7

Contact Us

Suntex thermal insulation fabric For Insulation Of Flanges And Pipes 8
