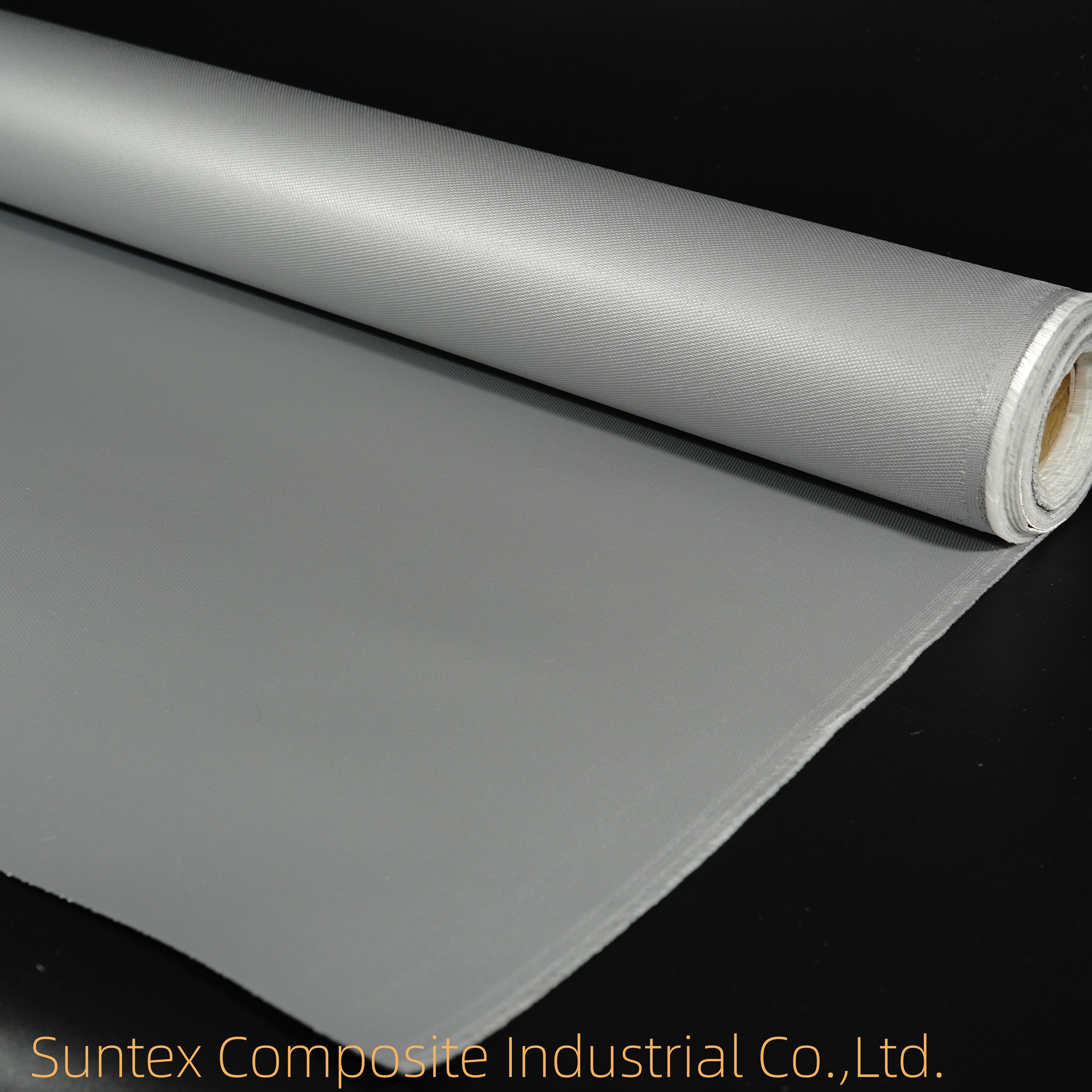

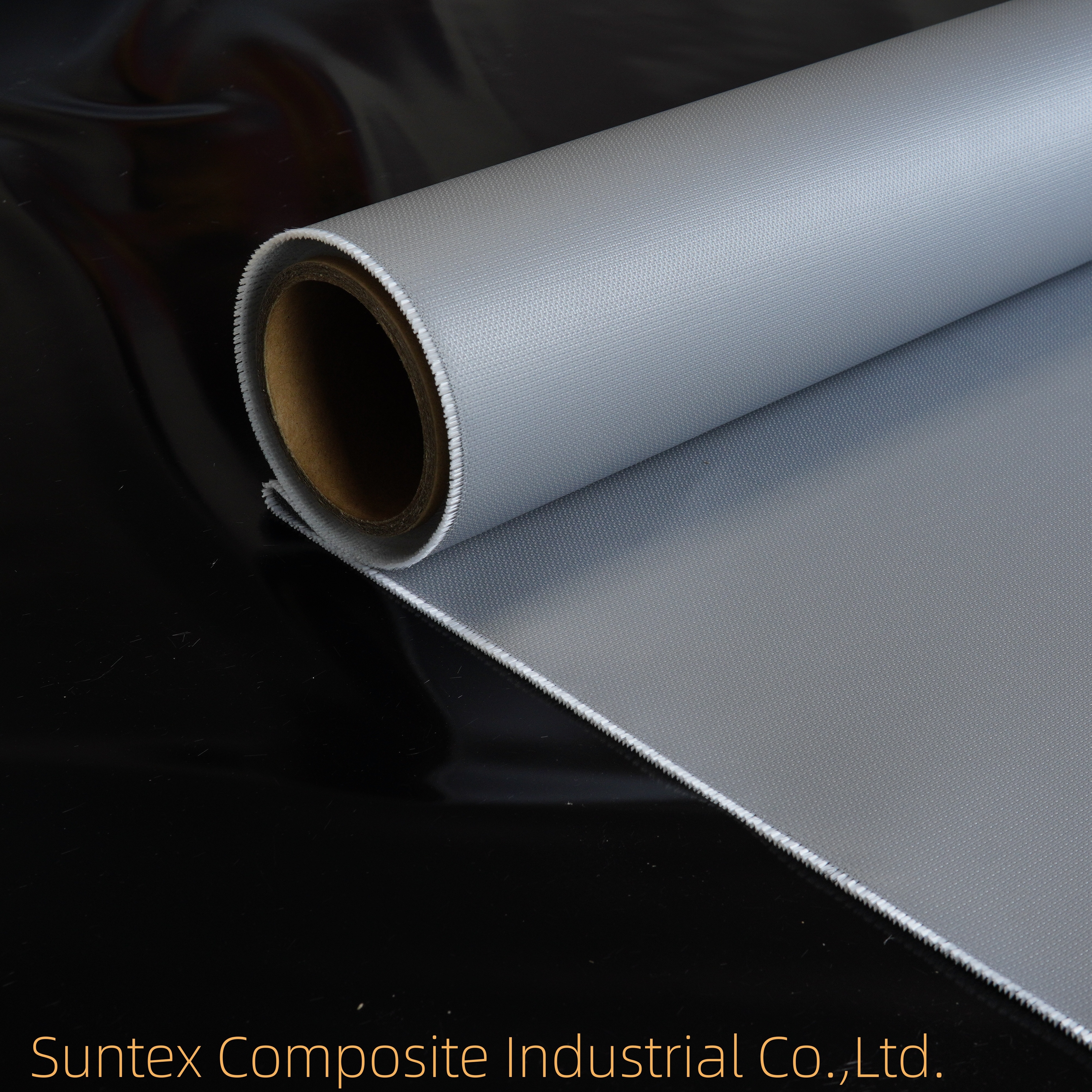

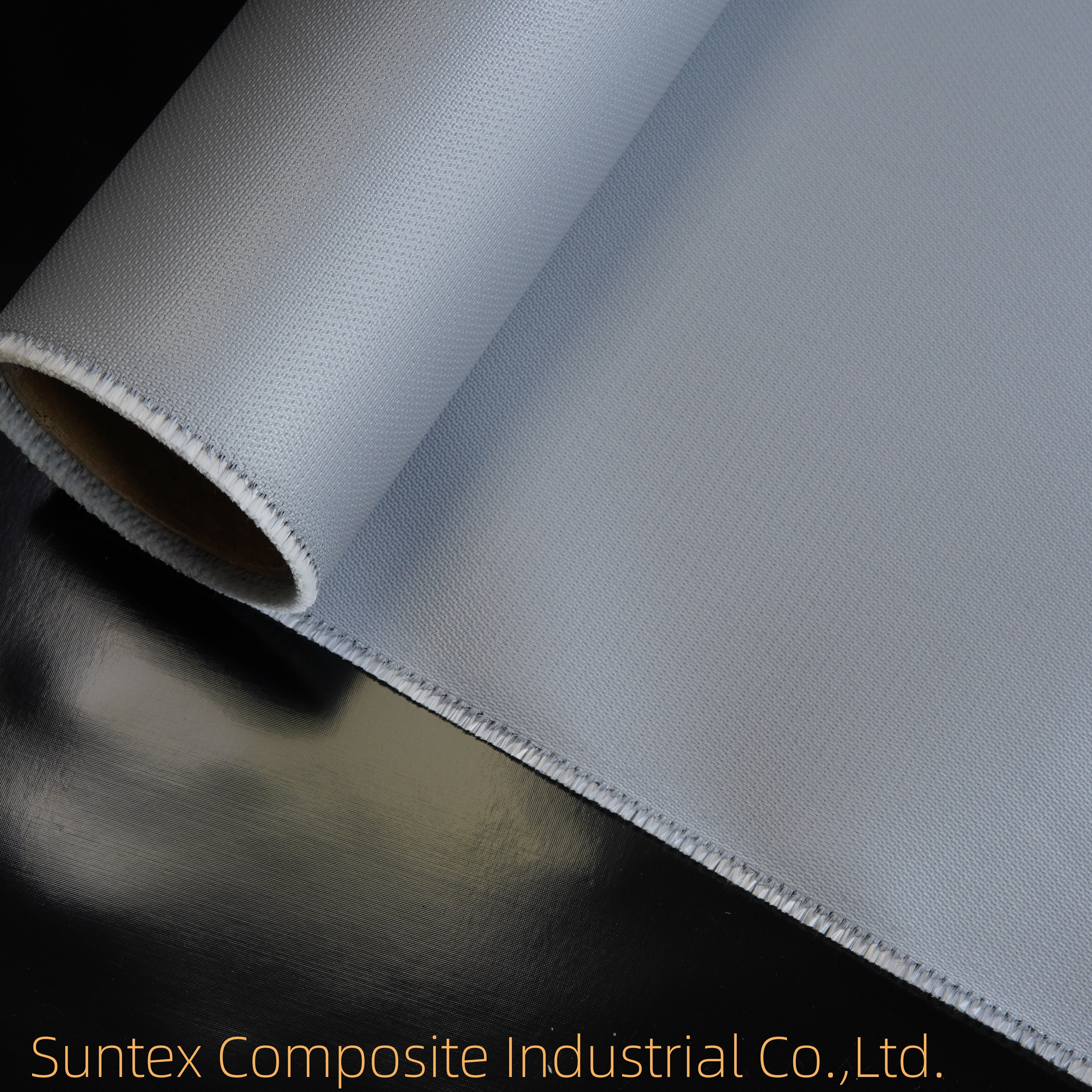

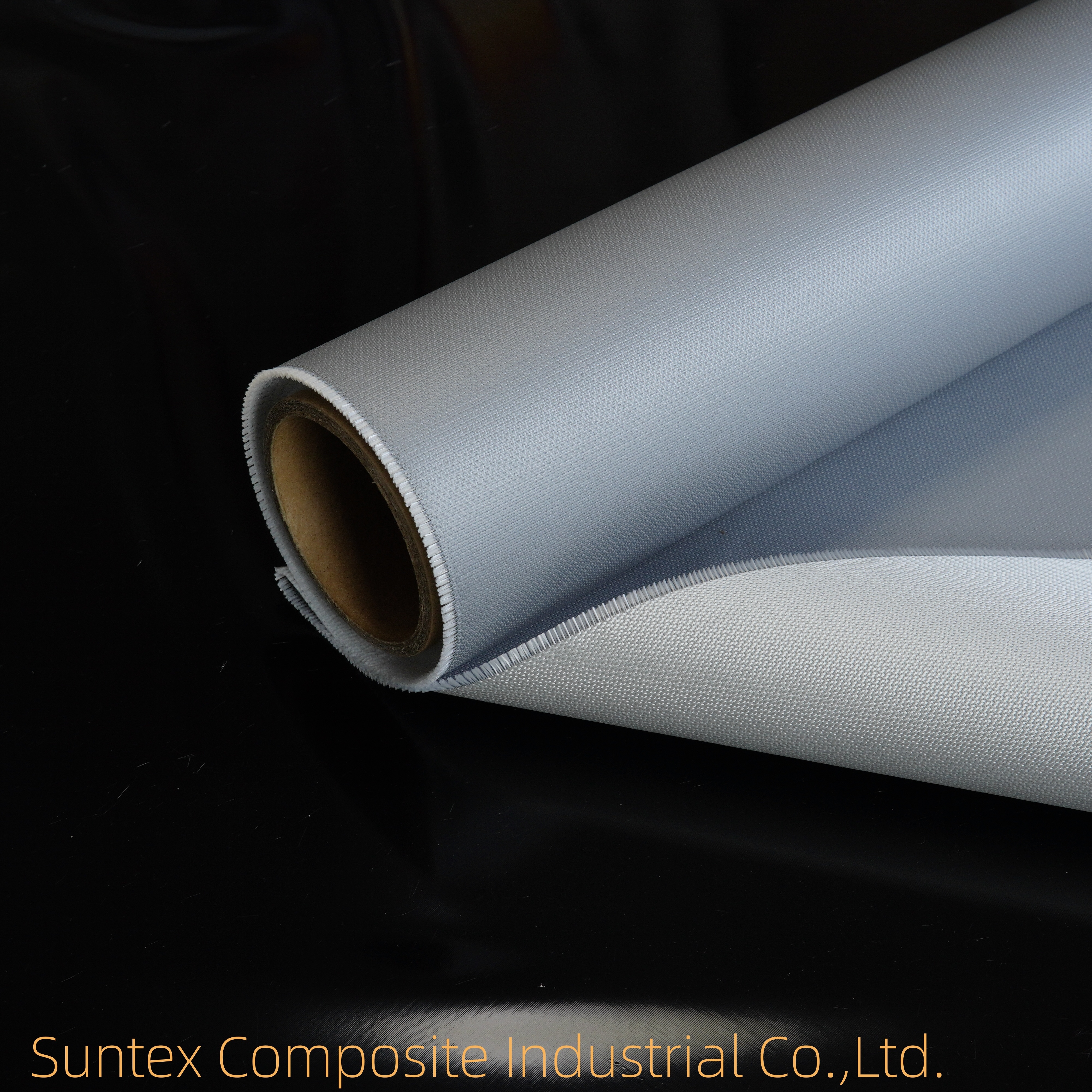

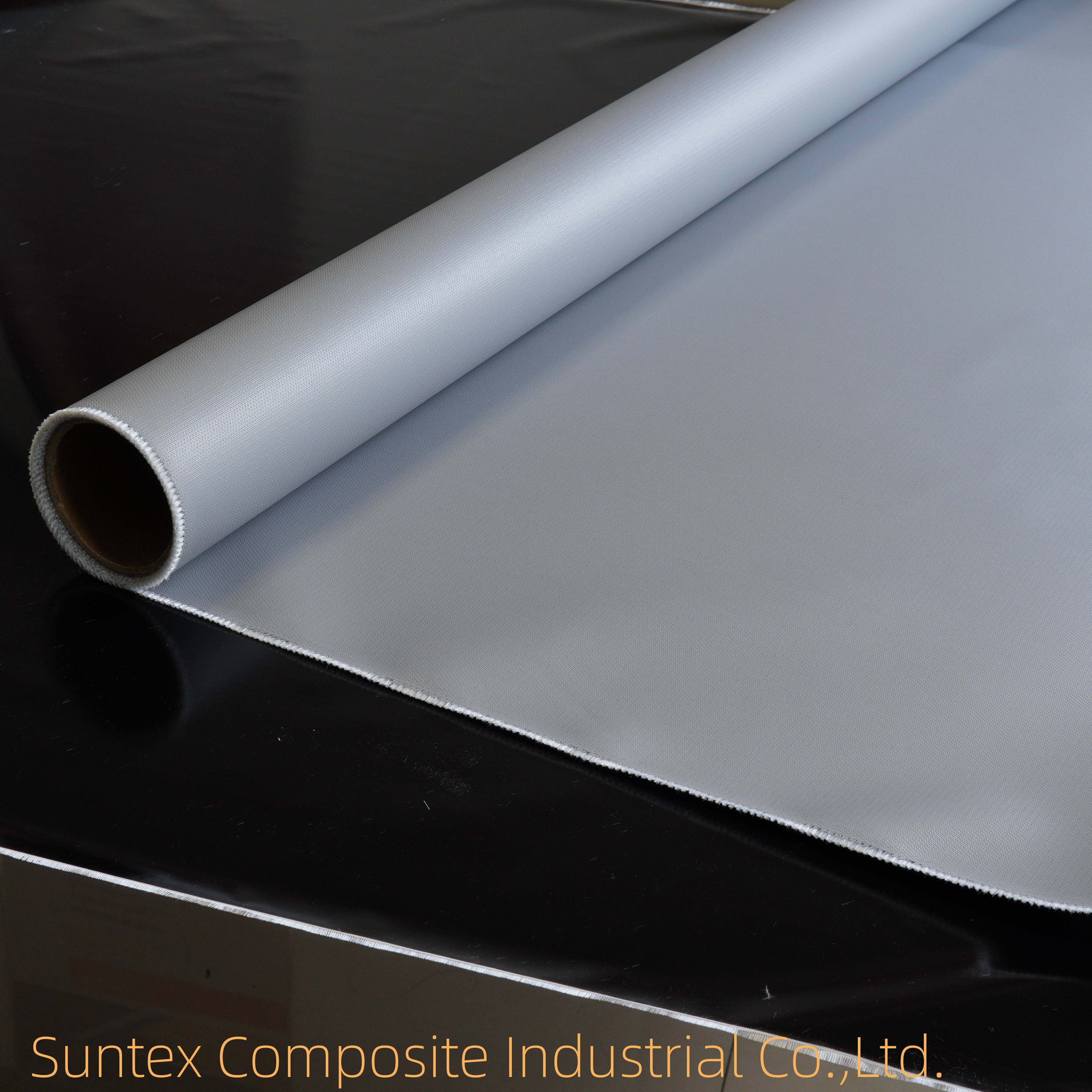

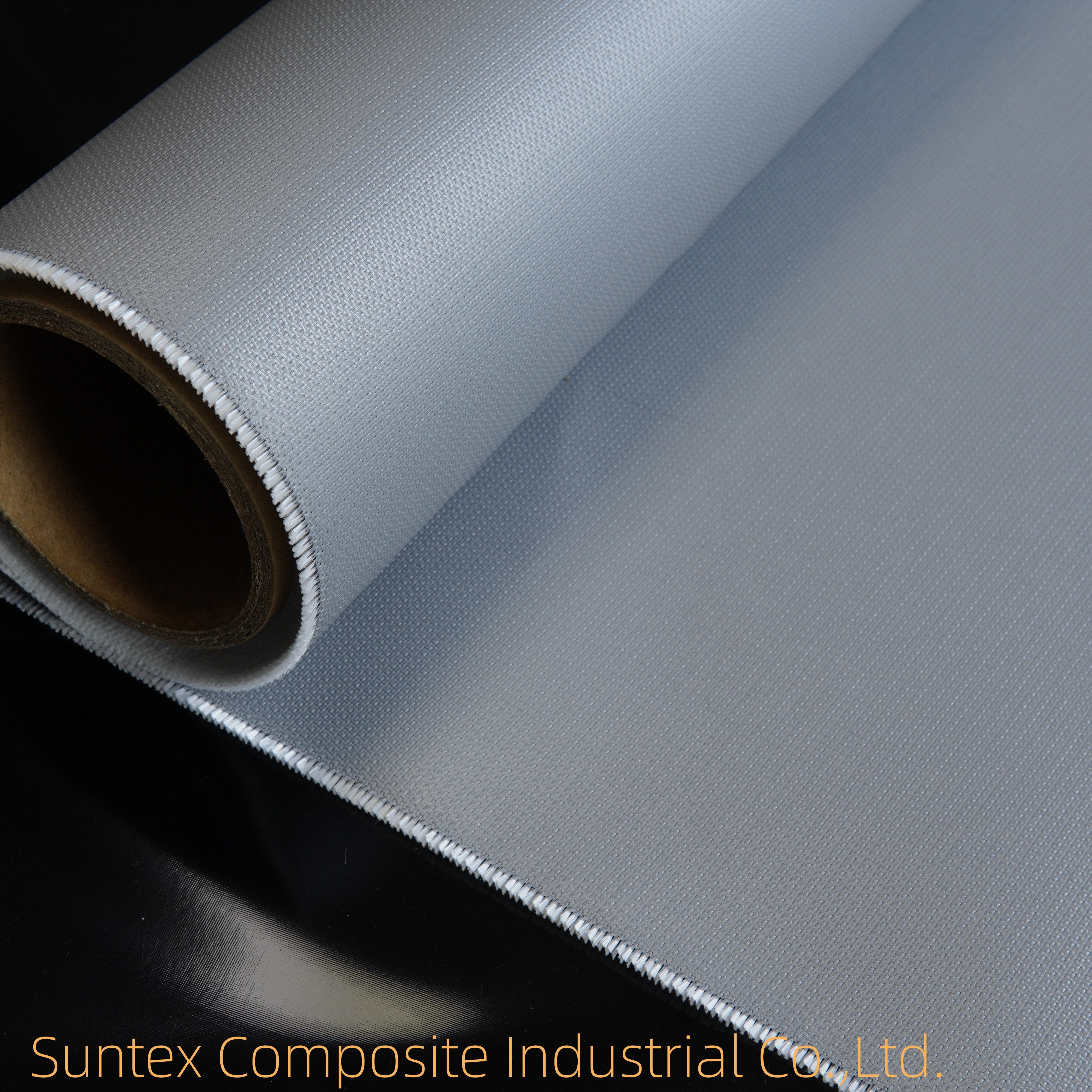

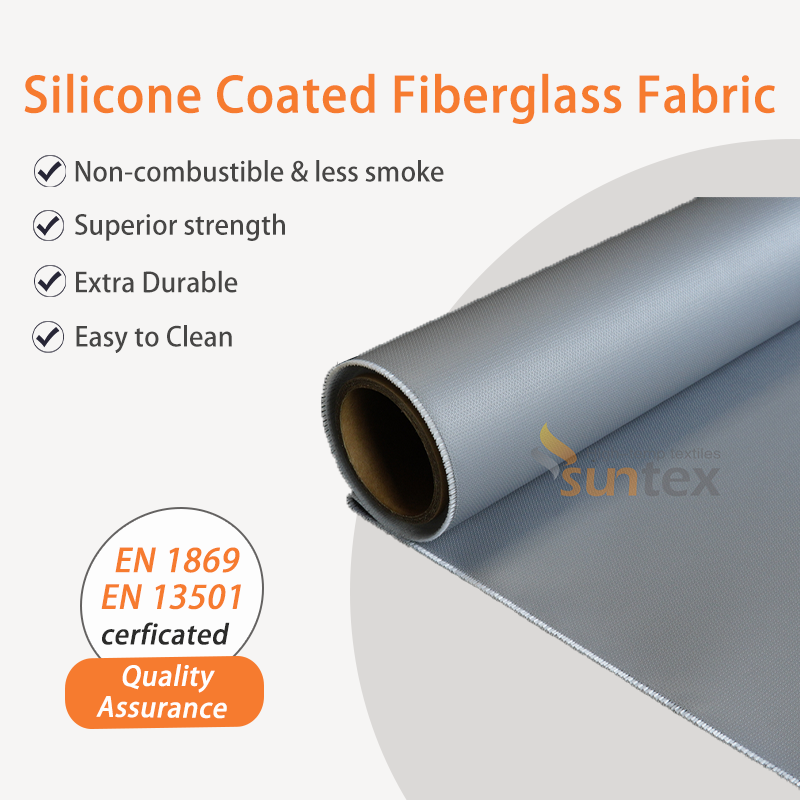

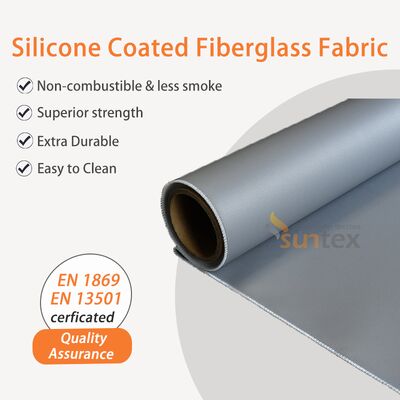

Excellent Insulation Thermal Conductive Silicone Fabric Cloth Fire Retardant Silicone Coated Fiberglass Fabric

Lugar de origen China
Nombre de la marca SUNTEX
Número de modelo GF200P-SI243-1053: el uso de la tecnología de la información
Cantidad de orden mínima 20 rollos
Detalles de empaquetado Cada rollo en cartón, varias cajas en paleta
Tiempo de entrega Entre 5 y 20 días
Condiciones de pago T/T; L/C, Paypal…
Capacidad de la fuente 500000sqm/month

Póngase en contacto conmigo para muestras y cupones gratis.

WhatsApp:0086 18588475571

En WeChat: 0086 18588475571

¿ Qué pasa?: sales10@aixton.com

Si usted tiene alguna preocupación, proporcionamos ayuda en línea de 24 horas.

x
Datos del producto
Temperature resistance -50 C degree to 500 C degree Weight 400 g/sqm
Thickness 0.3 mm Coating silicone rubber
Width 1 / 1.2 / 1.5 meter Alkali Content Alkali Free
Color Grey Roll length 50 m / 100 m
Resaltar

Excellent Insulation Silicone Coated Fiberglass Fabric

,

Fire Retardant Silicone Coated Fiberglass Fabric

Deja un mensaje
Descripción de producto

Grey Color Double Sided Silicone Coated Glass Fabric Insulation , Fire Retardant Curtain Fabric



Product Description



Silicone coated fiberglass fabrics

    Silicone coated fiberglass fabrics from Suntex offers good resistance to extreme temperatures, being able to operate normally from -500C to +5500C. It is also anti-corrosive, weatherproof, corrosion resistance, water repellent,anti-aging, good chemical resistance to acids and lye, good mechanical properties.



    Suntex provides one-sided/double-sided silicone coated fiberglass fabrics with many varieties of coating weight, colors, and widths for different applications.



Main applications:

1.Shipping, power generation, aerospace, marine
2.Foundry splash protection, welding defenders, motor vehicle industry

3.Insulation jackets, mattress, and pad

4.Fabric expansion joints

5.Fabric ductwork connector

6.Fire doors & Fire curtains

7.Welding/fire blankets

8.Other fire control systems



BASE FABRIC Base fabric style No. GF430P
  (metric) (English) Test methods
Weave 4H Satin Crowfoot
Yarn
Warp EC9 68 1*2 ECG 75 1/2
Weft EC9 68 1*2 ECG 75 1/2
Construction
Warp 18 ± 1 ends/cm 48 ± 3 ends/inch ASTM D 3775-96
Weft 12.6 ± 1 picks/cm 32 ± 3 picks/inch ASTM D 3775-96
Weight 430 ± 30 g/m2 12.6 ± 0.9 oz/yd2 ASTM D3776-96

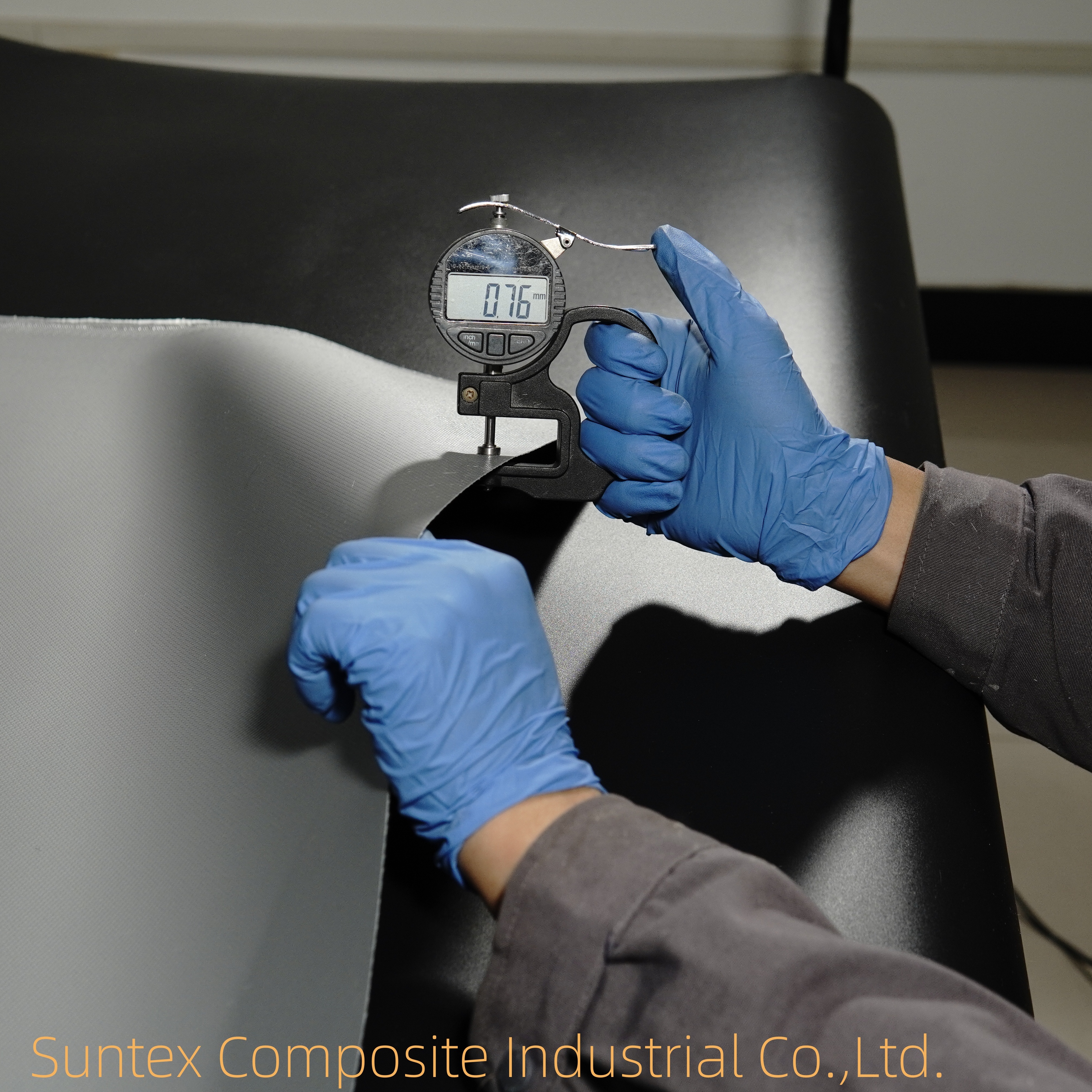

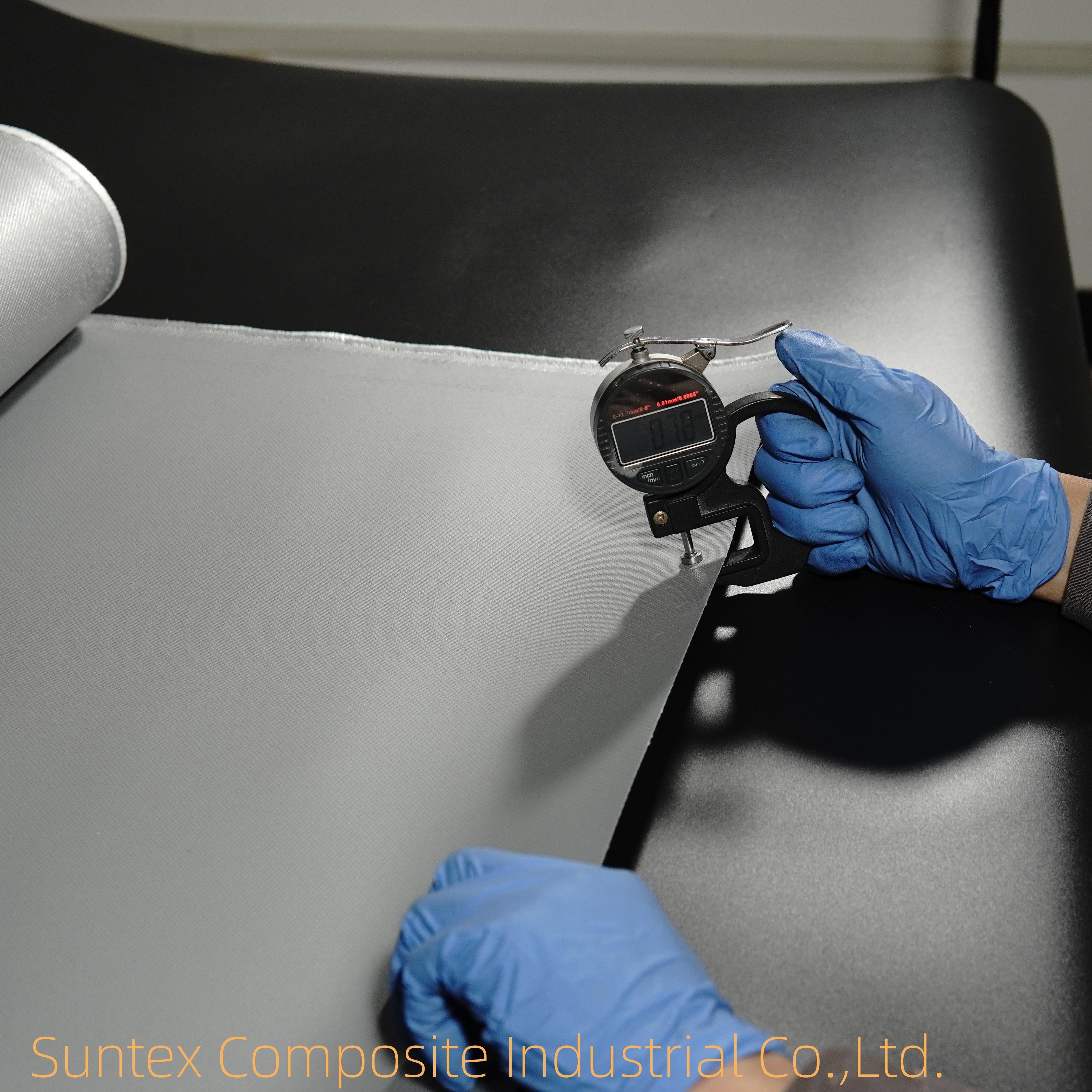

Thickness 0.37 ± 0.06 mm 0.015 ± 0.002 inch ASTM D1777-96

COATED FABRIC Coating style No. SI244-1017
Coating Silicone rubber 2 sides
Weight 590 ± 25 g/m2 17.4 ± 0.74 oz/yd2 ASTM D3776-96
Thickness 0.45± 0.02 mm 0.018 ± 0.0007 inch ASTM D1777-96
Color Red
Fire resistance Flame retardant
Temp resistance

Glass fabric up to 5500C (10000F)

Silicone rubber coating up to 2500C (4800F)
