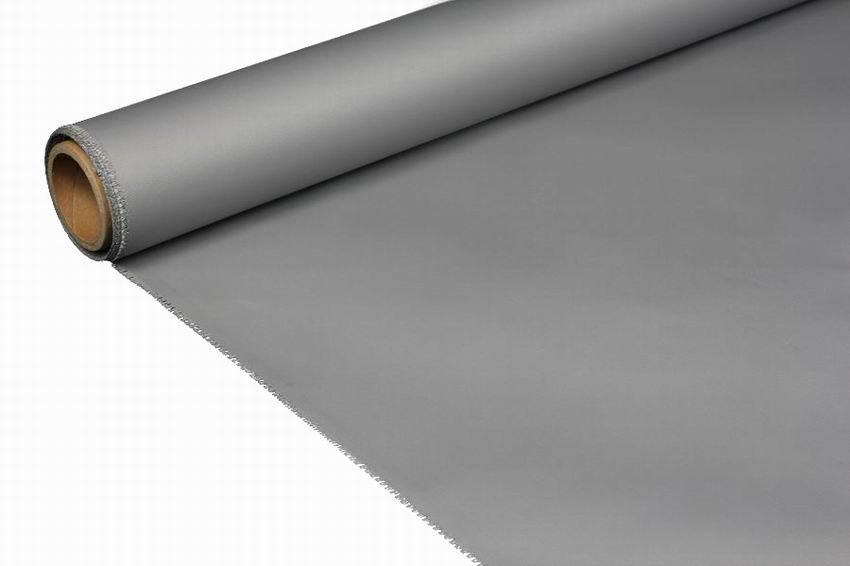

Fire Retardant PU Coated Fiberglass Fabric 460gsm Heat Resistant

  • Fire Retardant PU Coated Fiberglass Fabric 460gsm Heat Resistant
  • Fire Retardant PU Coated Fiberglass Fabric 460gsm Heat Resistant
  • Fire Retardant PU Coated Fiberglass Fabric 460gsm Heat Resistant
  • Fire Retardant PU Coated Fiberglass Fabric 460gsm Heat Resistant
  • Fire Retardant PU Coated Fiberglass Fabric 460gsm Heat Resistant
  • Fire Retardant PU Coated Fiberglass Fabric 460gsm Heat Resistant
  • Fire Retardant PU Coated Fiberglass Fabric 460gsm Heat Resistant
  • Fire Retardant PU Coated Fiberglass Fabric 460gsm Heat Resistant
Place of Origin China
Nombre de la marca SUNTEX
Model Number GF430P-PU21A-2006
Minimum Order Quantity 500 meter
Precio FOB Shanghai 2.3-5.6 $/sqm
Packaging Details Each roll in the carton, several cartons on the pallets
Delivery Time 5-15 working days
Payment Terms T/T, L/C, D/P, Western Union
Supply Ability 50000 meter per month

Póngase en contacto conmigo para muestras y cupones gratis.

WhatsApp:0086 18588475571

En WeChat: 0086 18588475571

¿ Qué pasa?: sales10@aixton.com

Si usted tiene alguna preocupación, proporcionamos ayuda en línea de 24 horas.

x
Datos del producto
Weight 460 g/sqm Thickness 0.41 mm
Color Blue / Black Weave Tape Twill Weave
Width 1m/1.3m/1.5m/1.52m/1.55m Coating Polyurethane
Resaltar

fire retardant PU fiberglass fabric

,

heat resistant fiberglass fabric 460gsm

,

PU coated fiberglass fabric with warranty
Deja un mensaje

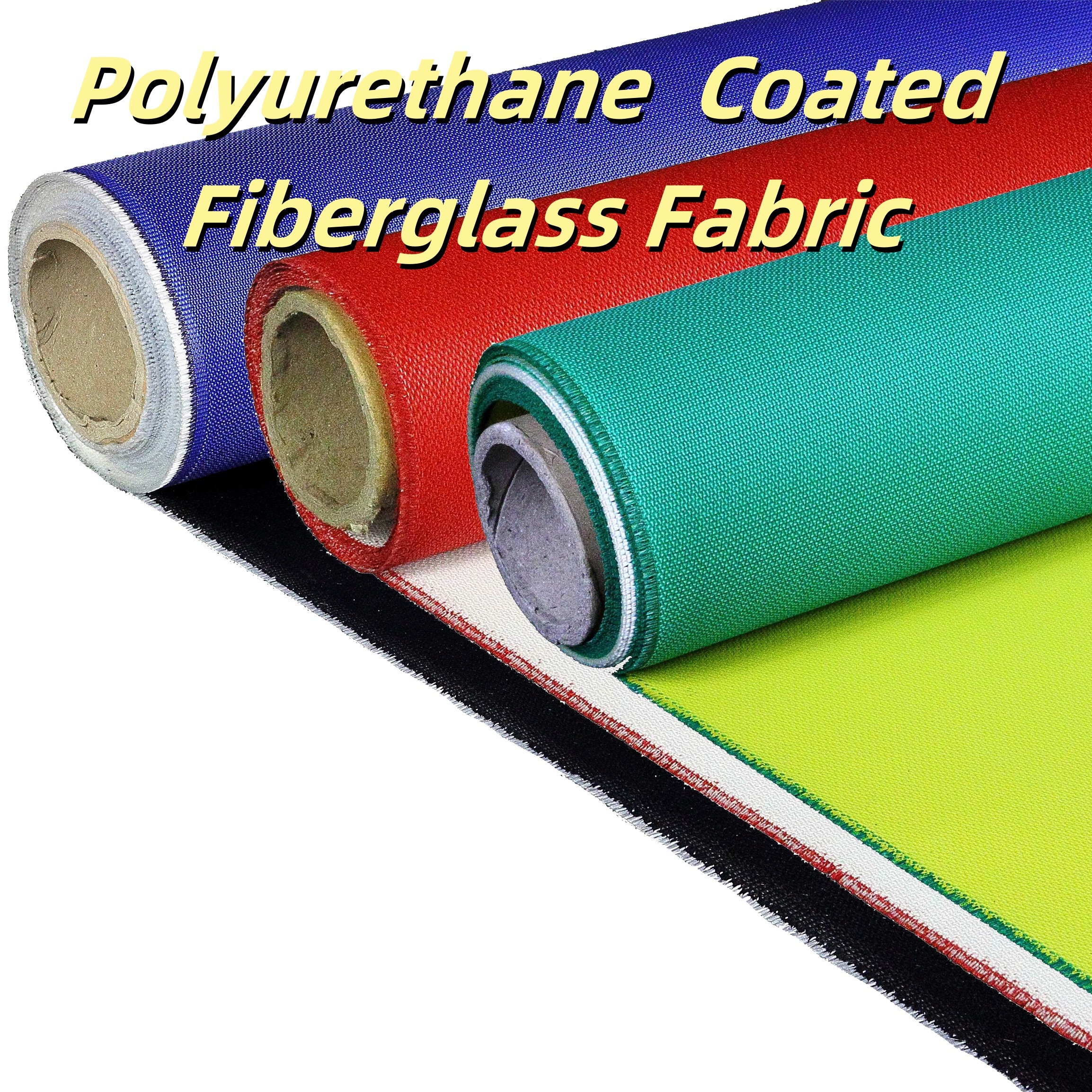

Descripción de producto

Suntex provides specially formulated polyurethane polymer coated fiberglass fabrics which can withstand temperature up to 1800C for short bursts. It has very good abrasion resistance and good resistance to oils and solvents.

Suntex provides one-sided/double-sided polyurethane coated fiberglass fabrics with many colors and widths. It has excellent fire resistance and good mechanical properties for make-up.



Main applications

-Fabric air distribution ducts.

-Fabric ductwork connector.

-Fire doors & Fire curtains.

-Welding/fir blankets.

-Other fire and smoke control systems.



BASE FABRIC Base fabric style No. GF430P
  (Metric) (English) Test methods
Weave 4H Satin Crowfoot
Yarn
Warp EC9 68 1﹡2 ECG 75 1/2
Weft EC9 68 1﹡2 ECG 75 1/2
Construction
Warp 18 ± 1 ends/cm 48 ± 3 ends/inch ASTM D 3775-96
Weft 12.6 ± 1 picks/cm 32 ± 3 picks/inch ASTM D 3775-96
Weight 430 ± 30 g/m2 12.6 ± 0.9 oz/yd2 ASTM D3776-96
Thickness 0.37 ± 0.06 mm 0.015 ± 0.002 inch ASTM D1777-96

COATED FABRIC Coating style No. PU21A-2006

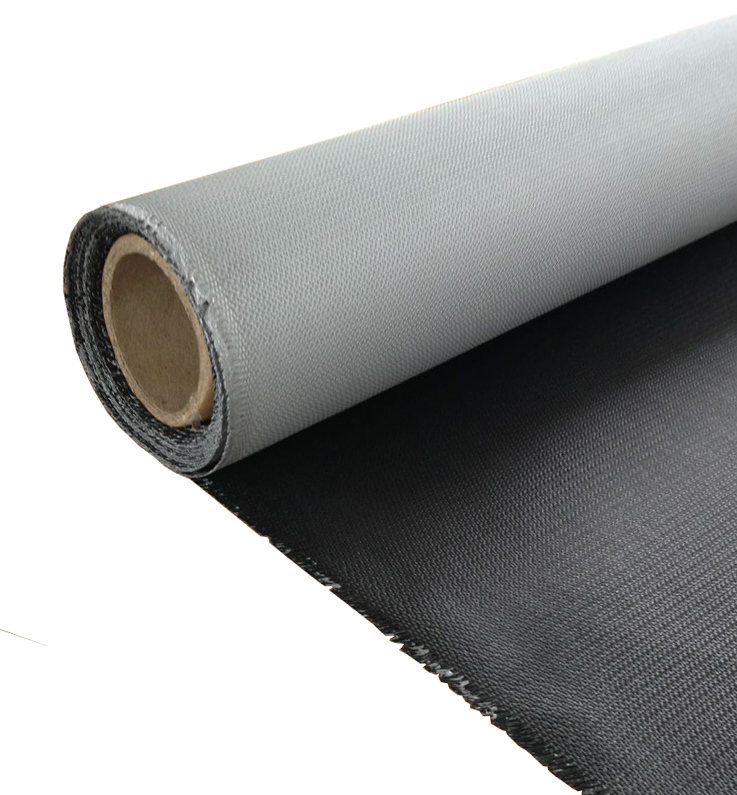

Coating Fire retardant, high performance, blue/black polyurethane on both sides
Weight 460 ± 20 g/m2 13.5 ± 0.59 oz/yd2 ASTM D3776-96
Thickness 0.41 ± 0.03 mm 0.017 ± 0.0012 inch ASTM D1777-96
Color Blue/Black
Fire resistance M0 approvals NF92507
Temp resistance

Glass fabric up to 5500C (10000F)

Polyurethane coating up to 1800C (3560F

Fire Retardant PU Coated Fiberglass Fabric 460gsm Heat Resistant 0Fire Retardant PU Coated Fiberglass Fabric 460gsm Heat Resistant 1Fire Retardant PU Coated Fiberglass Fabric 460gsm Heat Resistant 2Fire Retardant PU Coated Fiberglass Fabric 460gsm Heat Resistant 3

Style NO. Weight Thickness Color Coating
(g/m2) (oz/yd2) (mm) (inch)
GF430P—PU213-2005 460 13.5 0.40 0.015 Silver Grey Double side
GF430P—PU21B-2007 460 13.5 0.40 0.015 Grey White Double side
GF660S—PU113-2040 790 23 0.70 0.027 Grey Single side
GF660—PU223-2016 720 21 0.71 0.0275 Silver Grey Double side
TGF580—PU113-2019 620 18 0.75 0.0295 Grey Single side
TGF1020—PU111-2025 1070 31.5 1.5 0.0590 Green Single side

Related Style

Fire Retardant PU Coated Fiberglass Fabric 460gsm Heat Resistant 4Fire Retardant PU Coated Fiberglass Fabric 460gsm Heat Resistant 5Fire Retardant PU Coated Fiberglass Fabric 460gsm Heat Resistant 6Fire Retardant PU Coated Fiberglass Fabric 460gsm Heat Resistant 7Fire Retardant PU Coated Fiberglass Fabric 460gsm Heat Resistant 8Fire Retardant PU Coated Fiberglass Fabric 460gsm Heat Resistant 9Fire Retardant PU Coated Fiberglass Fabric 460gsm Heat Resistant 10Fire Retardant PU Coated Fiberglass Fabric 460gsm Heat Resistant 11Fire Retardant PU Coated Fiberglass Fabric 460gsm Heat Resistant 12Fire Retardant PU Coated Fiberglass Fabric 460gsm Heat Resistant 13Fire Retardant PU Coated Fiberglass Fabric 460gsm Heat Resistant 14Fire Retardant PU Coated Fiberglass Fabric 460gsm Heat Resistant 15

1. Q: Are you a factory or trading company?

A: We are a factory.



2. Q:Why do you choose us?

A: Suntex management and staff have over 20 years of cumulative experience in industrial textiles.



3. Q:What is your delivery time?

A:Generally we will within 30 days of delivery to you



4. Q:Can you product the customized goods?

A:Surely, we can be customized according to your demanding.



5. Q:What kinds of payment you accept?

A:We accept T/T, L/C ,D/P or other.



6. Q:Do you have other production?

A:Certainly,we still have Rewettable fiberglass fabric, EPDM rubber coated fiberglass fabric, Fluoride coated fiberglass

fabric, Hypalon coated fiberglass fabric, PVC coated fiberglass fabric, PVC coated polyester fiberglass Carbonized fabric,

Aluminized aramid fabric . We are looking forward to your enquiry.
